Identify every cable in under a second with TagPro™ protected, movable labels
The adhesive-free label system for data and fibre cables. TagPro™ clicks on by hand, slides and rotates so the tag always faces you, and lifts off clean when the run changes — no residue, no wrinkling, no fading.
Designed and manufactured in Ireland · Available for DATA and FIBRE
The problem with stick-on labels
A label that fails is a cable you have to trace all over again
Adhesive labels wrinkle as they are wrapped, fade in service, fall off in warm cabinets and leave residue behind when you finally get them off. Every failed label costs somebody time with a toner probe.
TagPro™ takes the adhesive out of the equation entirely. A printed tag is held in a moulded polypropylene carrier that clips around the cable jacket. It cannot wrinkle, it cannot fade, and it cannot leave a mark — because nothing ever sticks to the cable.
How it works
Four steps from browser to labelled cable
A fast, flexible, robust and completely reversible system — with no special printer, no proprietary cartridge and no software licence.

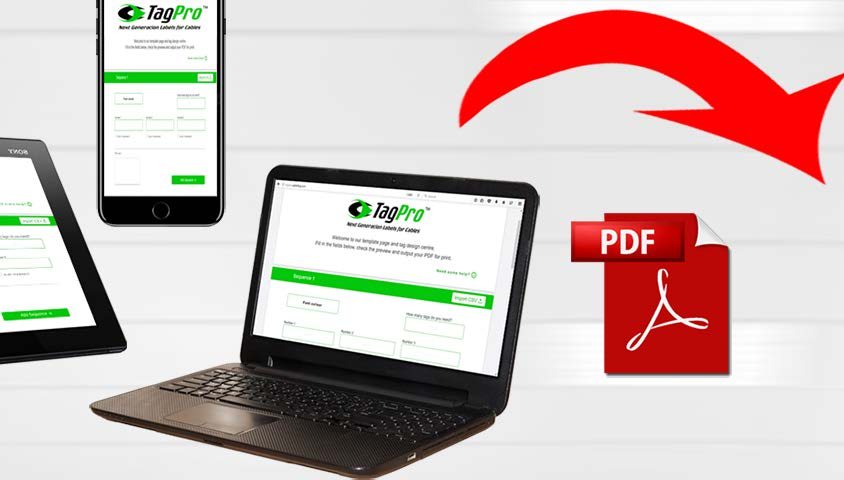

Lay out your tags online
Our free online app runs in any browser — nothing to install, nothing to license. Type your sequences or import a CSV, then preview the sheet on screen.

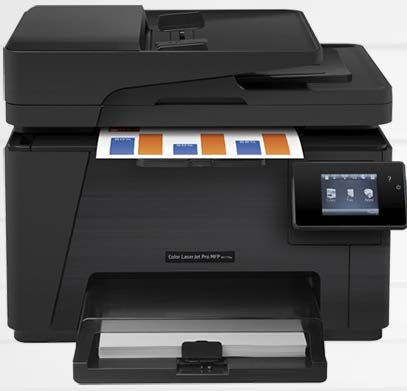

Print on any A4 laser
The app outputs a PDF that opens on any system and prints on any A4 laser printer. Standard A4 international and US Letter sheet sizes — no special printer required.

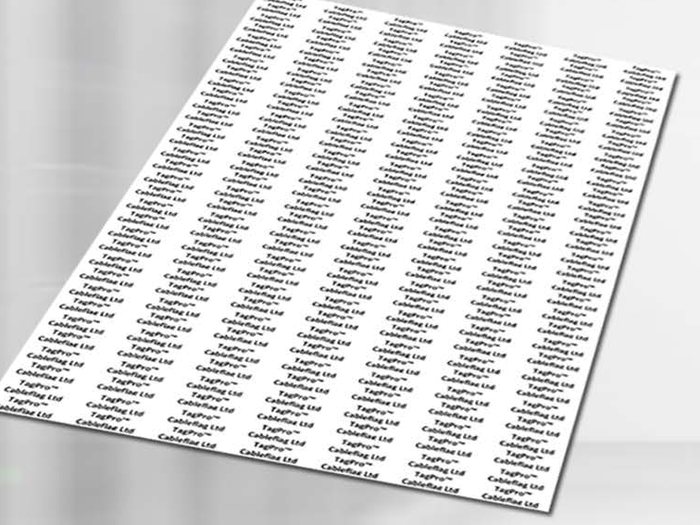

Up to 112 tags per sheet
Classic trilaminate paper, adhesive free, ready to use straight off the printer. Print only what the job needs — today, on site, without waiting on a supplier.
Click it on — and move it
The tag drops into the carrier and the carrier clicks onto the cable in under a second. Slide it, rotate it, read it, relocate it. Take it off by hand whenever you need to.
FREE TAGPRO™ APP
Print your labels
Lay out your tag sequences, preview the sheet and download a print-ready PDF. Free, no installation, no licence — it runs in any browser and works for both DATA and FIBRE.
Scan to open
“Slide, read, identify, locate, relocate.”
Protect, Move, Reuse
Why it is better
Six reasons installers switch and stay

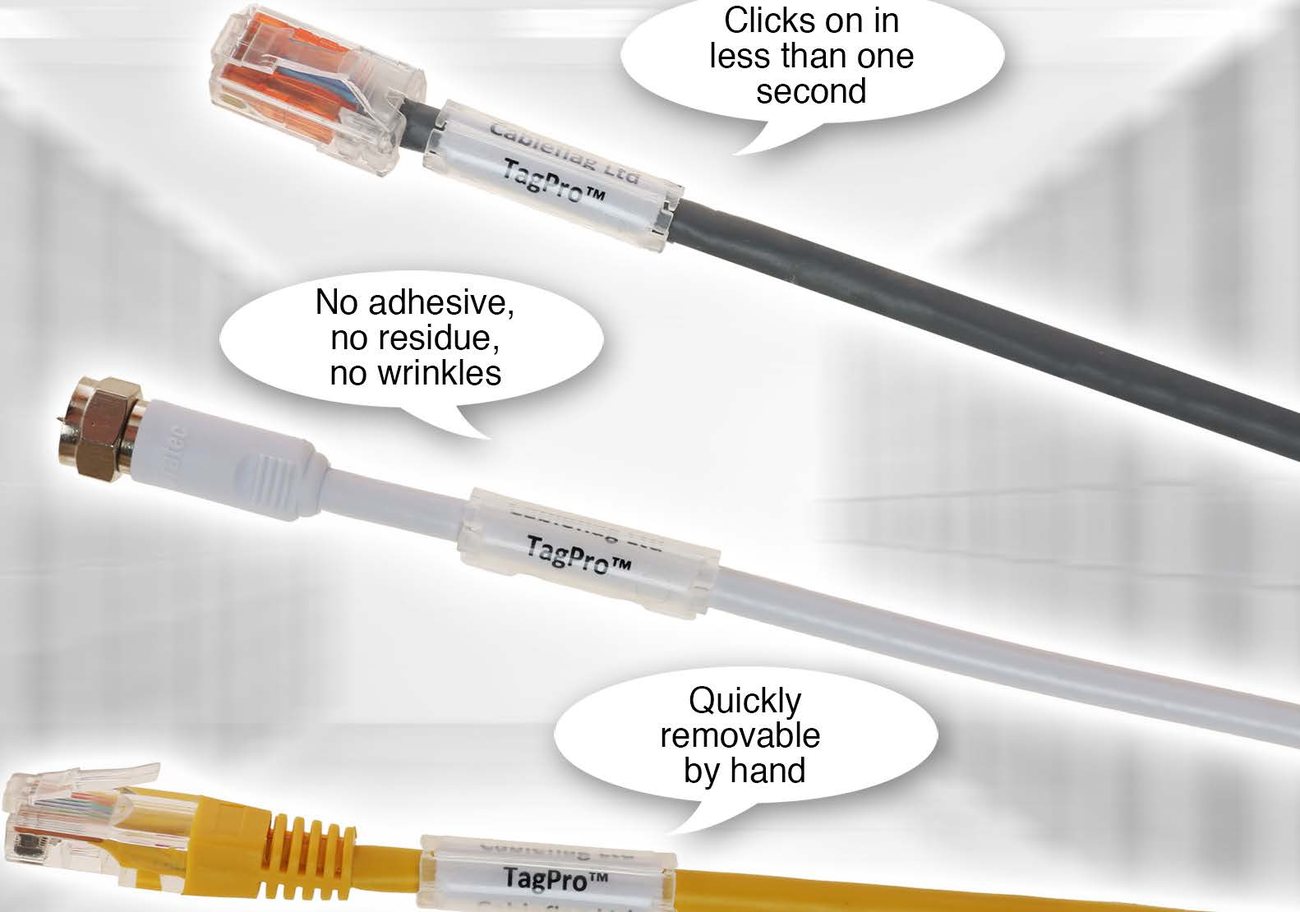

Fast install
The carrier clicks onto the cable in less than one second. No wrapping, no peeling backing paper, no waiting for adhesive to grab.
Easy remove
Quickly removable by hand. No knife, no cutters, no risk of nicking the cable jacket while you work in a live cabinet.
Free software
The online design app is free and browser based — any browser from 2016 onwards. No licence to renew, no seats to buy, no IT install request.
No adhesive
Nothing sticks to the cable, so nothing wrinkles, fades, falls off or leaves residue — in the cabinet or out on the run.
Rotates & slides
Position the tag exactly where it can be read. Slide it along the run or spin it round without taking anything apart.
A4 laser printing
Standard A4 international and US Letter sheets on any laser printer. No thermal transfer machine, no ribbons, no consumable lock-in.
Two variants, one system
Now available for both DATA and FIBRE
The same free software, the same printable sheets and the same click-on carrier. The only difference that matters is the cable it clips around — so choose by cable, not by catalogue.

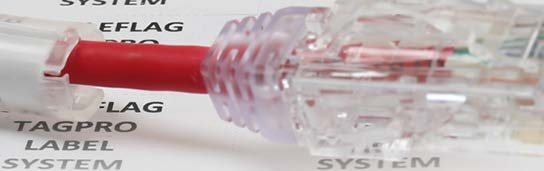

TagPro™ Data
For copper data and structured cabling
The patented TagPro™ Data system labels individual data cables neatly and safely. The printed tag sits inside a moulded carrier that closes with two clips, so it cannot spring open on its own — yet it still slides and rotates by hand whenever you need to read it.
- Copper cable from 4mm to 6mm in diameter
- Patch leads, horizontal runs and cabinet tails

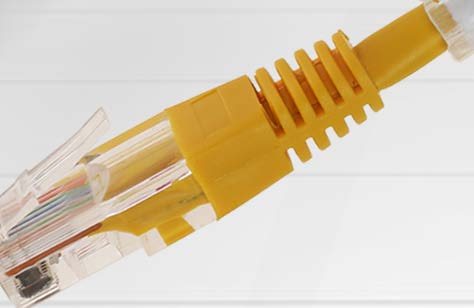

- Fits behind the connector boot without disturbing the termination
- Order codes TagPro D/200 and D/1000

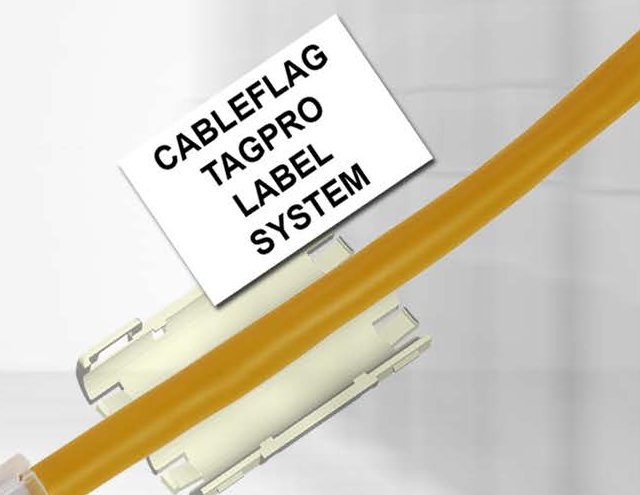

TagPro™ Fibre
For fibre jackets from 1.6mm to 3mm
The TagPro™ Fibre system holds the printed label inside a housing that grips around the fibre jacket, so the tag can be turned to wherever it reads best. Compact enough for dense fibre trays, movable by hand, and completely reversible.
- Fibre cable jackets from 1.6mm to 3mm
- No adhesive on the jacket, nothing to cut off later
- Positioned and repositioned without disturbing the run
- Order codes TagPro F/200 and F/1000
Specifications
TagPro™ DATA and FIBRE technical detail
| Specification | TagPro™ DATA | TagPro™ FIBRE |
|---|---|---|
| Cable jacket sizes | Copper data 4mm – 6mm | Fibre 1.6mm – 3mm |
| TagPro™ device physical size | 30mm (W) x 8.5mm (T) | 30mm (W) x 8.5mm (T) |
| Tag physical area | 27mm (W) x 18mm (T) | 27mm (W) x 18mm (T) |
| Device material type | Polypropylene Homopolymer, Moplen HP548R | Polypropylene Homopolymer, Moplen HP548R |
| Sheet material type | Classic Trilaminate Paper, kiss-cut | Classic Trilaminate Paper, kiss-cut |
| Sheet dimensions | A4 International — 297 x 210mm US Paper — 278 x 215mm |
A4 International — 297 x 210mm US Paper — 278 x 215mm |
| Sheet thickness | 115 ± µm (ISO 534) | 115 ± µm (ISO 534) |
| Printing | Any A4 laser printer — no ribbon, no thermal transfer | Any A4 laser printer — no ribbon, no thermal transfer |
| Order codes | TagPro D/200 · TagPro D/1000 | TagPro F/200 · TagPro F/1000 |
| ISO standards | Automatic Plastics Ltd — ISO 9001, ISO 13485, BRC-IOP Grade AA | Automatic Plastics Ltd — ISO 9001, ISO 13485, BRC-IOP Grade AA |
Both variants share the same carrier, the same printed tag area and the same A4 laser sheets, so one stock of paper and one free app cover your whole estate. Pricing for either variant is available on request.

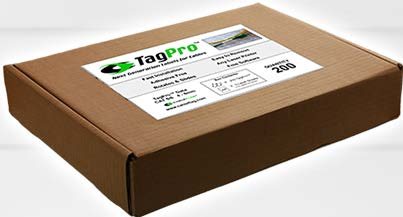

200 unit box
3 sheets — 336 tags (international) / 324 tags (US)
Box weight 0.28 kg

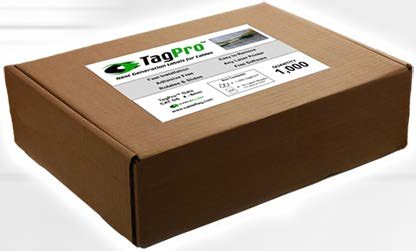

1,000 unit box
10 sheets — 1,120 tags (international) / 1,080 tags (US)
Box weight 0.75 kg
Questions
What installers ask us first
Will it leave residue on the cable?
What is the difference between TagPro™ DATA and TagPro™ FIBRE?
Do I need a special printer or ribbon?
What does the software cost?
Can a tag be moved or reused after installation?
How many tags come in a box?
Get the full technical detail
Download the TagPro™ data sheet
Full dimensions, materials, sheet specifications, box quantities and standards for both the DATA and FIBRE variants — everything your specification or tender pack needs, in one PDF.
Pricing is available on request. Tell us the volume you are working to and we will come back with a quote and, if it helps, a sample to try on the bench.
Send me the data sheet
The full technical PDF, straight to your inbox.
We will only use your details to send the data sheet and answer your enquiry. Prefer to talk? Call us on +353 (0)1 230 2117.
