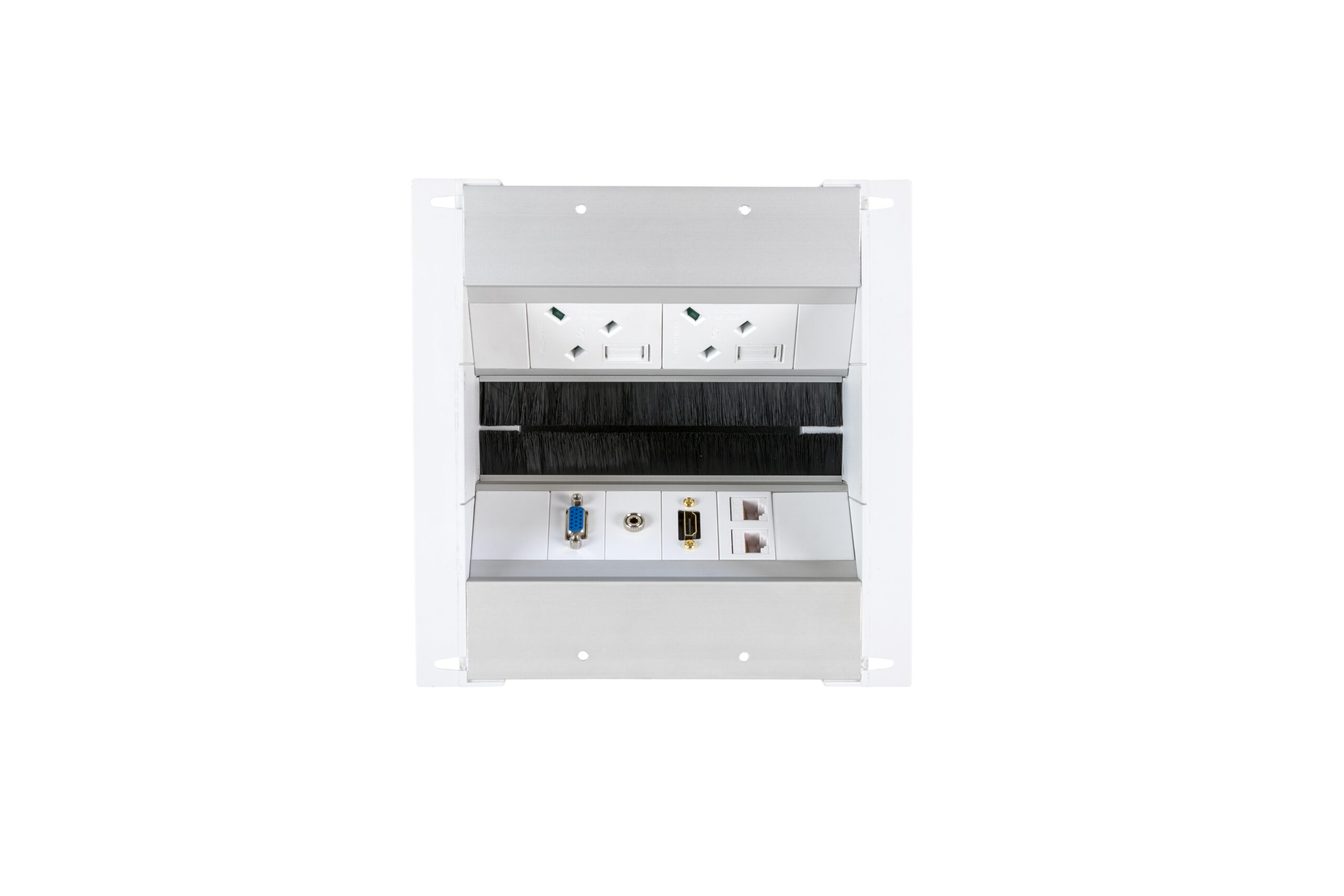

V Dock

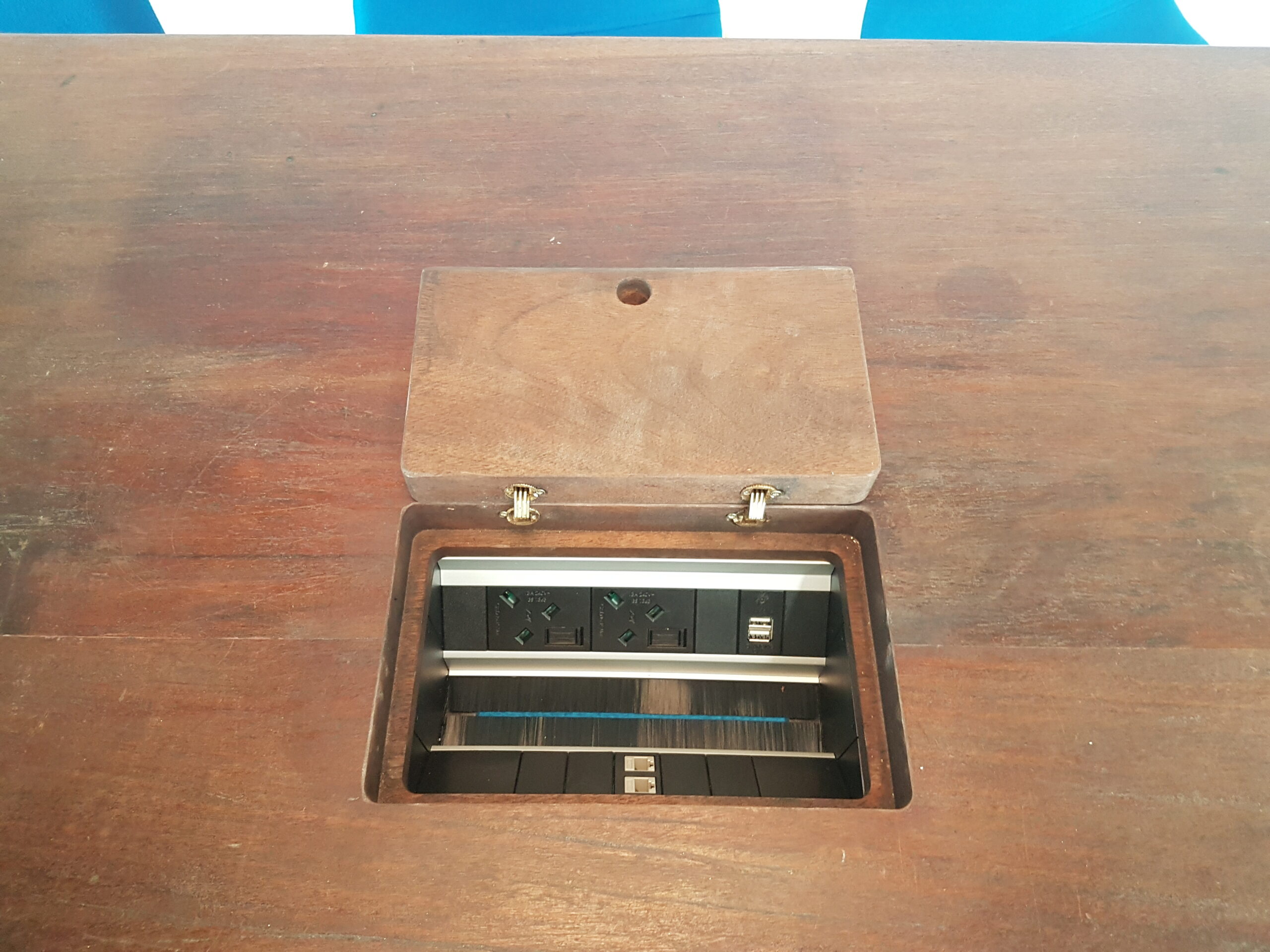

The V Dock is the perfect hidden unit that attaches to the under side of the work surface and allows for the end user to cover the unit with any hinged flap or roller cover of their design.

FEATURES

Available with modular protection modules (power filters, circuit breakers, earth leakage devices)
Up to 30 different international socket types can be fitted
Can be supplied with two or more circuits in one unit

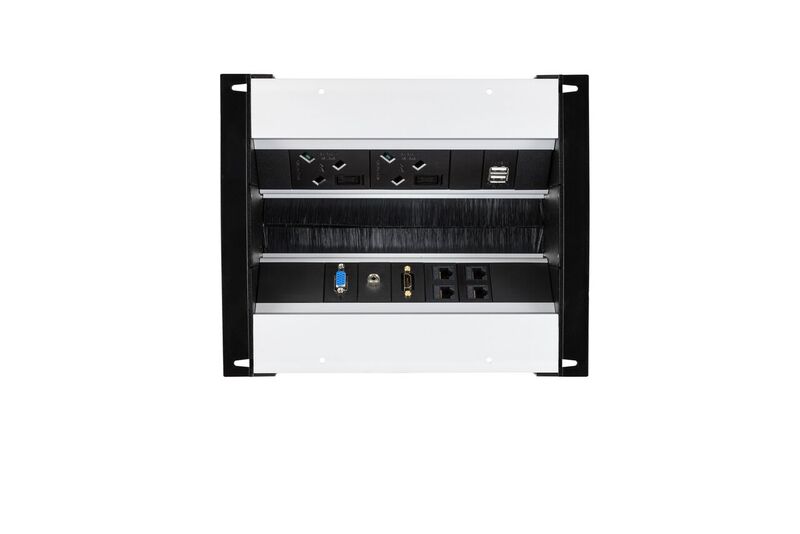

Hybrid power (power and data in one unit)
Robust aluminium housing

ELECTRICAL

Operating Voltage:        220V – 250V AC @ 50 Hz
                                         110V – 125V AC @ 60 Hz

Current:                          15A (20A with upgraded wiring)

Max Power:                    1800W @ 110V – 125V AC
                                         3000W @ 220V – 250V AC

Local electrical regulations determine the final electrical rating of the system.

For higher current ratings, please consult your distributor directly.

DIMENSIONS

Cut-out width:               126.5mm (Approx. 5 in.)

Cut-Out length:             Depending on Configuration

Total Height:                  100.5mm (Approx. 4 in.)

WORK SURFACE THICKNESS

Various thickness can be accommodated but the maximum recommend thickness is 100mm (Approx. 4 in.).
