GTAG12 Air-Guard

GTAG12 Air-Guard ( GTAG6RD )

Product Enquiry Print This Product
Category:

Product Description

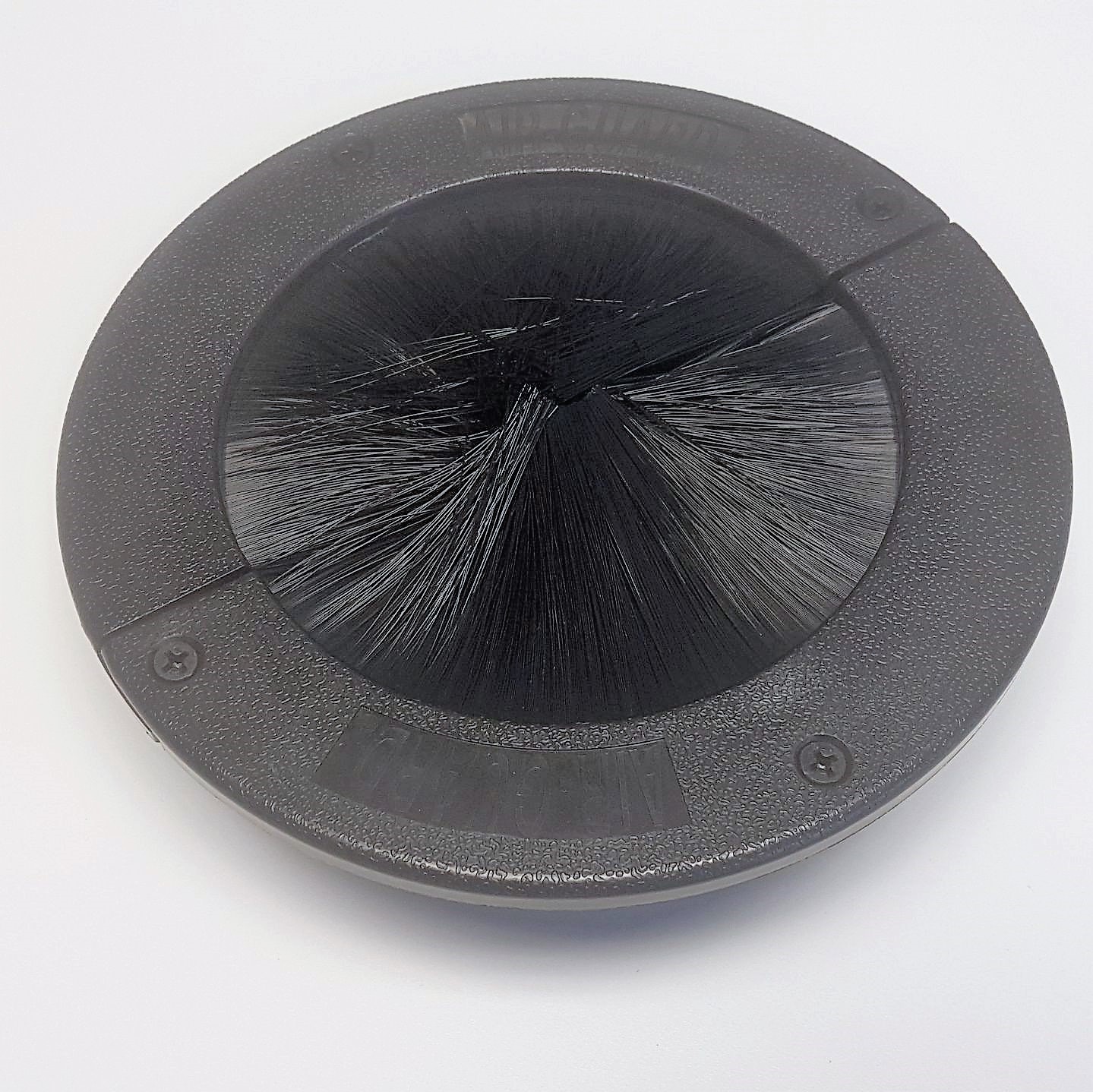

GTAG12 Air-Guard Grommet – 152mm Hole Size- Features deeper 45mm sleeve protection

Circular 2 Part Sealed Cable Grommet

  • Made from Flame Retardant Materials
  • Features a brush and gasket seal for a better air seal
  • Extra Deep 45mm body provides complete cable protection even through thick heavy duty floor panels
  • Fixing hardware supplied with the grommet

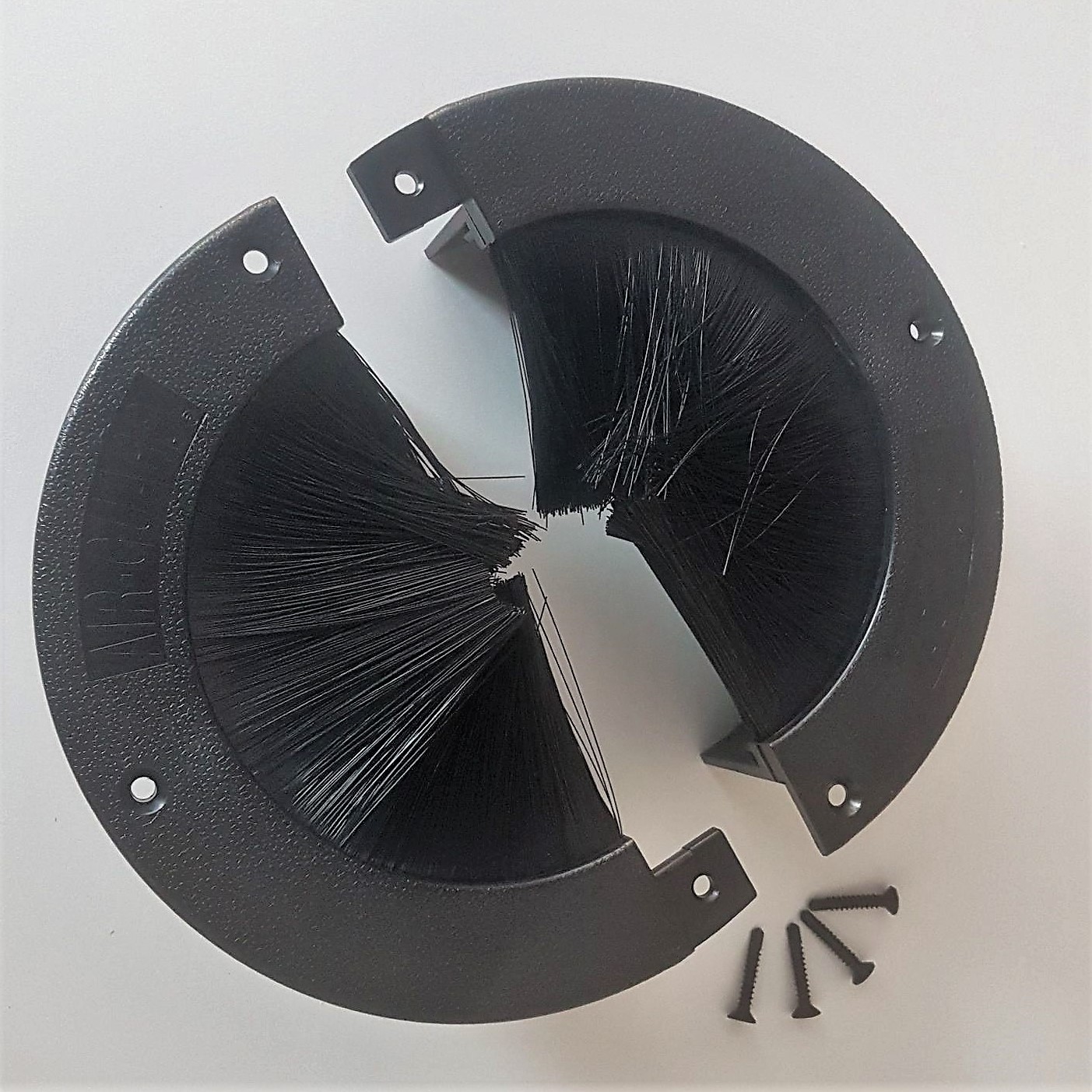

  • Split 2 part grommet allows the opening to be cabled prior to the installation of the grommet
  • Wide support flange facilitates keyhole panel cut allowing panel to be removed without disconnecting cables

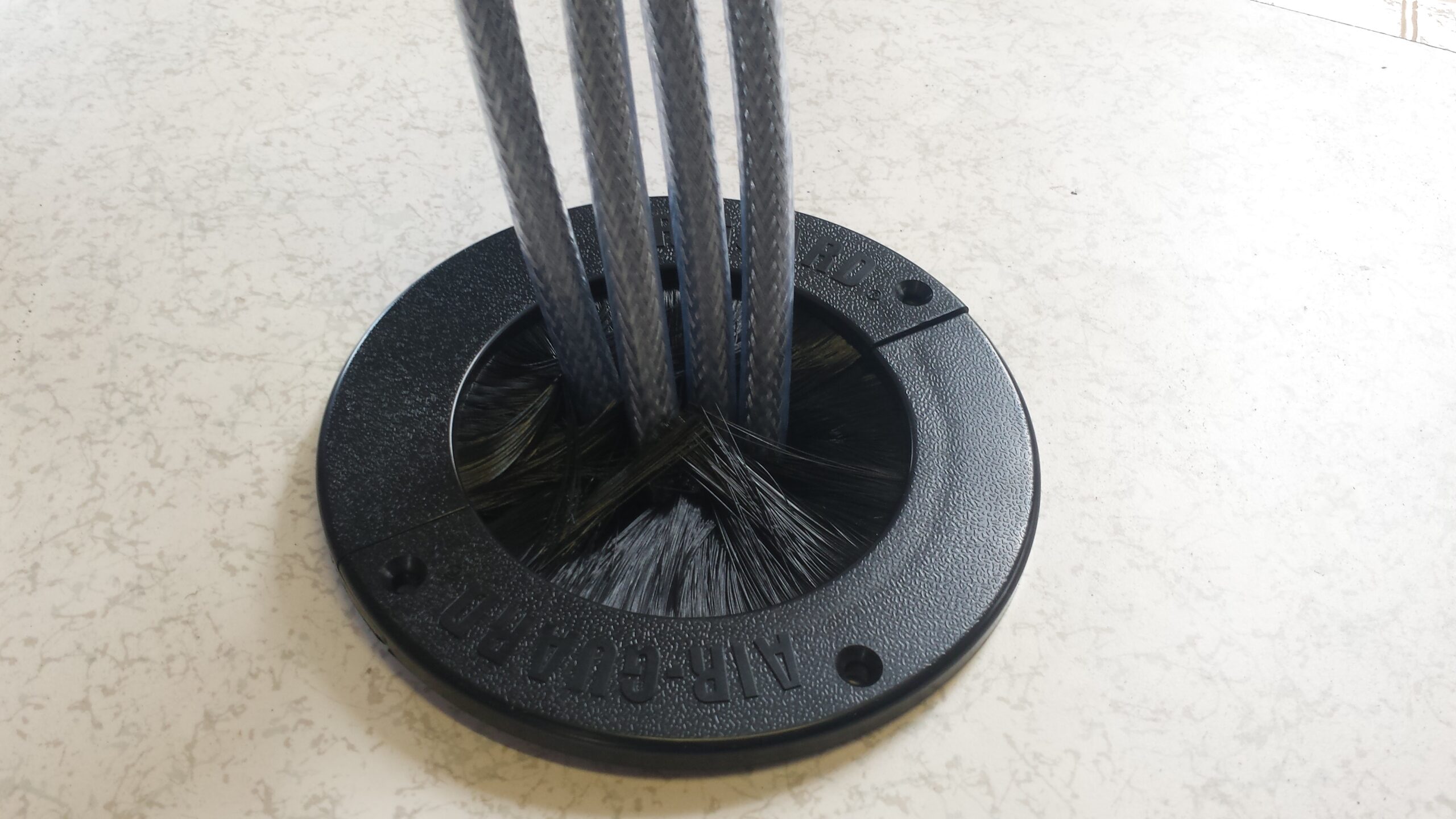

  • 125mm diameter opening enables the easy passage of cables and plug tops through the installed grommet
  • The generous brush seal provides excellent air sealing around cables, reduces by-pass air and improves cooling performance
  • Sealing cable openings in a plenum cooled data centre is proven as one of the most cost effective initiatives in reducing air cooling costs

Dimensions

Overall Diameter – 192mm

Cut Out Diameter -152mm

Cable Opening – Max 110mm diameter

Depth – 45mm

Overall Height – 53mm
